What is an Injection Mold?

An injection mold is a precision tool used to produce plastic parts in high volume. It is installed in an injection molding machine where melted plastic is injected into the mold cavity, cooled, and then ejected as a finished part.

A standard mold usually includes:

• Core and cavity (product shape)

• Runner and gate system (plastic flow path)

• Cooling system (temperature control)

• Ejection system (part release)

The quality of the mold directly affects the stability and appearance of the final product.

How Custom Injection Molding Works

Custom injection molding is a process where the mold is designed and built according to a specific product requirement. It is not a standard product — each mold is made for a unique part.

The general workflow is as follows:

• Product drawing or idea review

• Engineering evaluation (DFM check)

• Mold design

• Mold manufacturing

• Trial testing

• Mass production

Step-by-Step Custom Mold Development Process

1. Product Review

We first check the product structure, material, and function. This helps us understand whether the design is suitable for injection molding and if any adjustments are needed.

2. DFM Analysis

DFM (Design for Manufacturability) is an important step. It helps identify potential issues such as uneven wall thickness, undercuts, or deformation risks before mold design begins.

3. Mold Design

Our engineers design the mold structure, including parting line, gate position, and cooling layout. This step is key to ensuring stable production later.

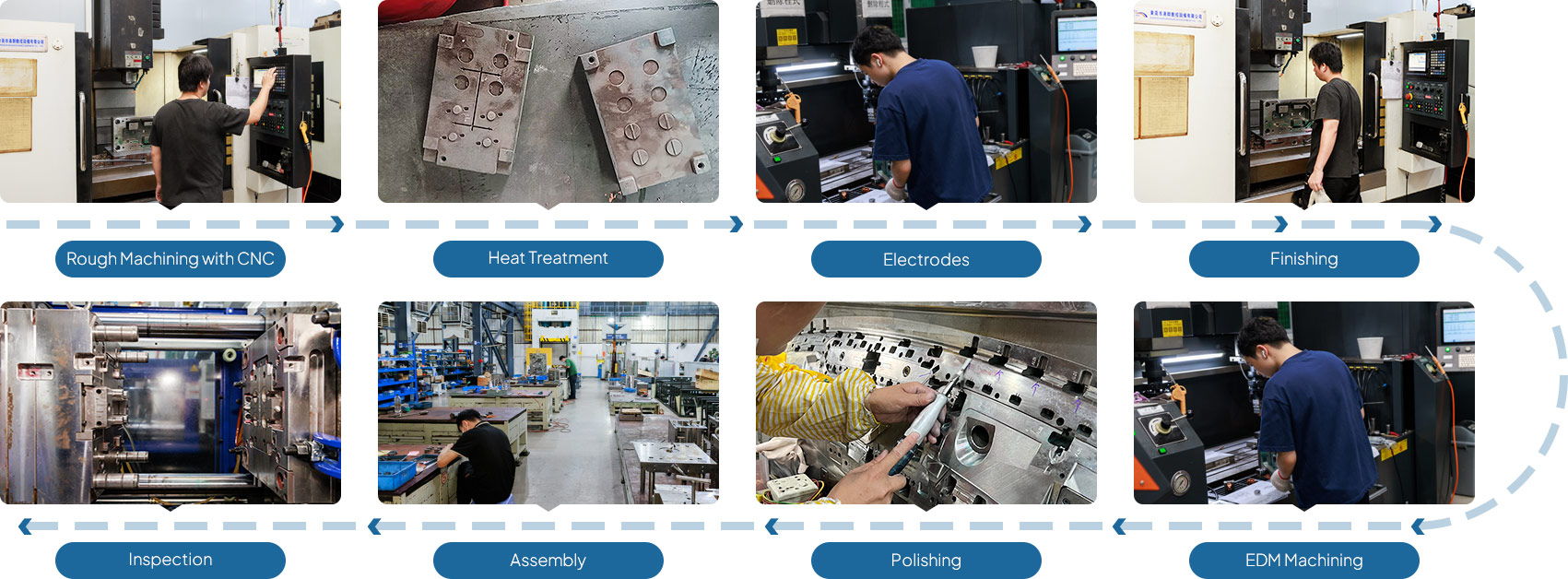

4. Mold Manufacturing

The mold is produced using CNC machining, EDM, and wire cutting. Each component is made with high precision to ensure proper fit and performance.

5. Mold Assembly & Finishing

After machining, all parts are assembled and polished. We also check the movement and alignment of the mold structure.

6. Trial Run (T1 Testing)

The first trial injection is done to check whether the product meets design requirements. If needed, we make adjustments to improve performance.

7. Production

Once approved, the mold is ready for mass production. The goal is stable quality and consistent output.

Where Injection Molds Are Used

• Automotive plastic parts

• Electronic device housings

• Household products

• Industrial components

Why Custom Mold Design Matters

A well-designed mold helps reduce production problems, improve product quality, and extend mold lifespan. This is why engineering review and design experience are very important in every project.

At Youking Mould, we focus on providing stable and practical mold solutions based on real manufacturing experience.

FAQ

What is the difference between a mold and injection molding?

The mold is the tool, while injection molding is the production process using that tool.

How long does it take to make a custom mold?

It depends on product complexity, usually a few weeks to around two months.

Can I change the design after mold production starts?

Small adjustments are possible, but major changes may require redesign.
