How to Choose a 2K Mold Manufacturer for Two-Shot Injection Molding

A 2K mold produces a single part from two different colors or two different materials in one molding cycle. Instead of molding two separate pieces and assembling them, the Tool moves the first shot into a second cavity and injects the second material directly onto it. Choosing the right 2K mold manufacturer matters more than for a standard tool, because two-shot molding adds indexing accuracy, material bonding, and machine compatibility to the usual mold requirements.

What Is a 2K Mold?

A 2K mold is a mold that forms two components in a single machine cycle. The first shot creates one part of the geometry; the mold then indexes, and the second shot overmolds the second color or material onto it. The result is a finished part with no secondary assembly. The tool is also called a two-shot mold, a double-shot mold, or a two-color injection mold — the names describe the same process.

The key difference from a standard mold is the indexing motion. A 2K mold must hold two cavities in perfect alignment across the index, so the first and second shots land in the right position every cycle. That alignment requirement is what separates an experienced two-shot injection mold supplier from a general mold maker.

How Does the Two-Shot Injection Molding Process Work?

Two-shot molding follows a repeating cycle in which the mold moves the first shot into position for the second. A typical sequence runs like this:

1. The mold closes and injects the first material into the first cavity.

2. The first shot cools and stays on the core while the mold opens.

3. The mold indexes — a rotary platen turns, or a slider shifts the core — moving the first shot in front of the second cavity.

4. The mold closes and injects the second material over the first shot.

5. The finished two-material part cools and is ejected.

6. The mold indexes back to its start position for the next cycle.

The index can be driven by a rotating platen, a core-back motion, or an indexing table, depending on the machine and the part. Because the two shots happen in one cycle, two-shot molding removes the assembly step entirely — which is where most of the cost saving comes from.

When Should You Use a 2K Mold Instead of a Single-Color Mold?

A 2K mold costs more to build than a single-color mold, so it earns its place when the part gains something from being molded in one cycle. Common reasons include:

• Two-color appearance with a clean, molded-in boundary instead of painting or printing

• A soft-touch or rubber grip overmolded onto a rigid substrate

• Integrated sealing where the second material forms a gasket in place

• Elimination of a secondary assembly step, which cuts labor and defect risk

• Medical and hygiene parts where assembly joints would trap contamination

The trade-off comes down to two-color mold vs single-color mold cost. A two-color mold costs more up front, but on a high-volume part the saved assembly time and improved quality often outweigh it. On low volumes, two separate parts joined later can be cheaper.

What to Look for in a 2K Mold Manufacturer

Because two-shot tooling is less forgiving than a standard mold, the supplier's process matters as much as the price. This section explains how to choose a 2K mold manufacturer. A two-color injection molding manufacturer should be able to prove every point below, not just claim it.

Ask any prospective supplier for a 2K mold they have already run in production, and ask how they verified the index alignment. If the answer is vague, the tool will likely struggle at high cycle counts.

2K Mold Design and Tolerance Considerations

A 2K mold design has to solve problems a single-color mold never faces. These are the points that decide whether the tool runs cleanly:

• Index tolerance. The two cavities must repeat to a tight position, or the second shot will be off-register.

• Material pairing. The substrate and the overmold must bond chemically or mechanically; incompatible pairs delaminate.

• Gate placement. The second shot's gate must fill the overmold area without washing over the first shot.

• Shrinkage difference. The two materials shrink at different rates, so the cavity dimensions are compensated separately.

• Cooling balance. Both shots must cool evenly in one cycle, or the part warps at the material boundary.

For a custom 2K injection mold, these decisions are made during design review, before any steel is cut. Send us the part drawing and the two materials, and our engineers will flag any pairing or tolerance risk early. You can start through our quote request.

2K Mold Applications: Automotive and Medical

Two of the strongest uses for 2K tooling are automotive and medical parts, because both gain from removing assembly.

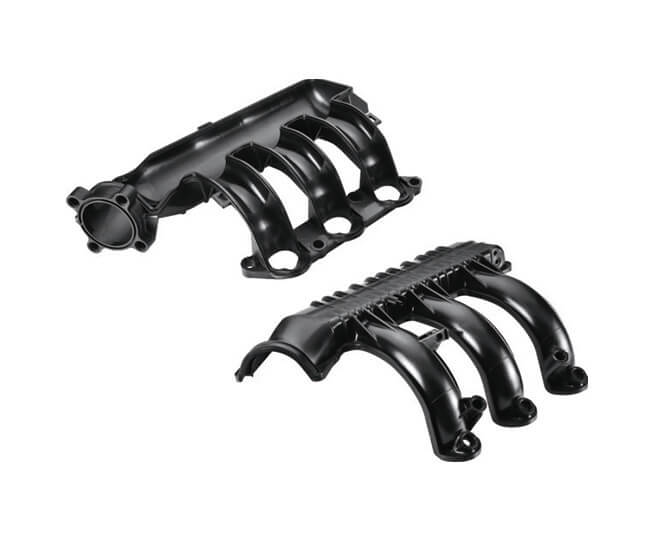

A 2K mold for automotive parts can combine a rigid structural plastic with a soft-touch surface, or mold a two-color interior trim in a single cycle. In these parts the molded boundary also removes a painting step. For two-shot injection molding for medical devices, the main gain is hygiene: an overmolded seal has no joint for contamination to collect, and the part is finished without secondary handling. YouKing Mould builds both, alongside our 2K mold and two-color injection molding case range.

Why Choose YouKing Mould?

YouKing Mould has manufactured precision injection molds since 2006, producing 300 to 400 sets a year for customers in Europe, America, and Australia. We run 20 single-color injection machines and 7 two-shot injection machines in-house, so a 2K mold is trialed on our own equipment and the index alignment is proven before it ships.

Because we also mold production parts, we design two-color tooling for the cycle time and quality you will actually run, not just for a passing sample.

Start Your 2K Mold Project

Send us your part drawing (2D or 3D), the two materials or colors you want to combine, and your expected annual volume. Our engineers will review the index design and material pairing, then return a mold design and quote. Reach us through our inquiry form or contact page, and we will reply within one working day.
