Injection Mold Manufacturing Process Explained: From Product Design to Mass Production

High-quality plastic products begin with a precision mold. Whether manufacturing automotive components, electronic housings, medical devices, or consumer products, the performance of an injection mold directly affects product quality, production efficiency, and overall manufacturing cost. Understanding the injection mold manufacturing process helps buyers choose the right supplier and reduce project risks.

At Youking Mould, we specialize in custom plastic injection mold manufacturing for global OEM and ODM customers. From product analysis to mold Design, CNC machining, EDM processing, mold assembly, trial production, and mass manufacturing, every stage follows strict quality control procedures.

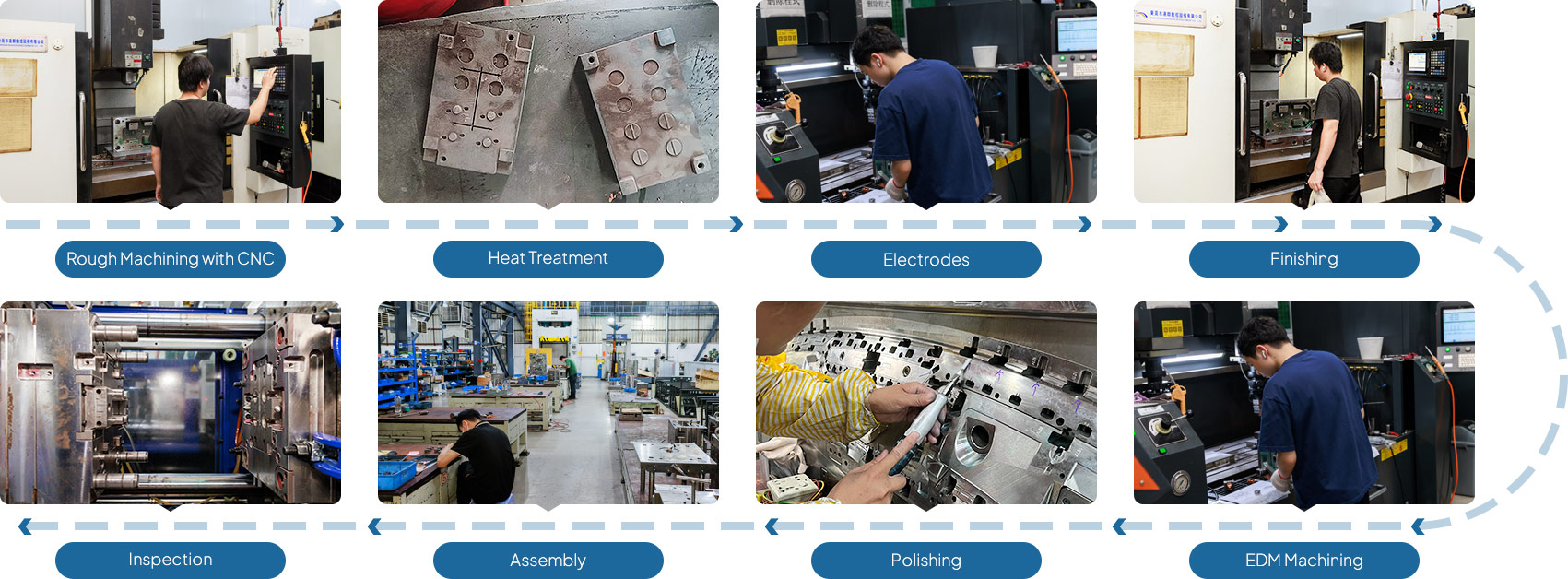

Step 1: Product Analysis and DFM Review

Every successful mold project starts with product evaluation. Engineers analyze the customer's 2D drawings or 3D CAD files to verify wall thickness, draft angles, undercuts, gate locations, and parting lines. Design for Manufacturability (DFM) helps identify potential molding issues before production begins, reducing development time and unnecessary costs.

Step 2: Mold Design

After confirming the product structure, experienced mold designers create the complete mold layout. This includes cavity configuration, runner system, cooling channels, ejector mechanism, sliders, lifters, and venting systems. Proper mold design ensures balanced filling, stable cooling, and long mold life.

Step 3: Material Selection

Selecting suitable mold steel is essential for durability and precision. Different applications require different materials depending on production volume, surface finish, and product requirements.

Step 4: Precision CNC Machining

Once the mold design is approved, CNC machining begins. High-speed machining centers produce mold bases, cavity inserts, and core components with excellent dimensional accuracy. Precision machining minimizes assembly errors and improves mold consistency throughout production.

Step 5: EDM and Wire EDM Processing

Complex features that cannot be machined using conventional cutting Tools are manufactured using Electrical Discharge Machining (EDM) and Wire EDM. These technologies create sharp corners, narrow slots, and intricate geometries while maintaining excellent dimensional precision.

Step 6: Mold Assembly and Polishing

After all components are completed, experienced technicians assemble the mold and perform polishing, fitting, and alignment. Surface finishing directly influences the appearance and release performance of molded plastic parts.

Step 7: Mold Trial and Optimization

Before mass production, the mold undergoes trial molding to verify dimensional accuracy, filling balance, cooling efficiency, and product appearance. Engineering adjustments are made if necessary until the mold achieves stable production performance.

Applications of Custom Injection Molds

Custom injection molds are widely used in many industries, including:

• Automotive interior and exterior components

• Consumer electronics housings

• Medical equipment and laboratory devices

• Home appliance components

• Industrial connectors

• Packaging and consumer products

• Electrical accessories

Customization Options at Youking Mould

Every manufacturing project has unique technical requirements. Youking Mould provides flexible customization services, including:

• Single-cavity and multi-cavity molds

• Hot runner and cold runner systems

• Insert molding solutions

• Overmolding and two-shot molding

• Mirror polishing and texture finishing

• Prototype tooling and production molds

• OEM and ODM engineering support

Why Choose Youking Mould?

At Youking Mould, we combine advanced CNC machining, precision EDM technology, experienced engineering teams, and strict quality management to deliver reliable mold solutions for customers worldwide. From concept development to mass production, we focus on precision, efficiency, and long-term manufacturing performance.

Conclusion

A precision injection mold is the foundation of successful plastic manufacturing. By following a systematic manufacturing process—from DFM analysis and mold design to CNC machining, EDM processing, assembly, and mold testing—manufacturers can achieve consistent product quality and lower production costs.

If you are looking for an experienced injection mold manufacturer capable of delivering customized mold solutions for complex applications, visit Youking Mould to learn more about our engineering capabilities and custom manufacturing services.
